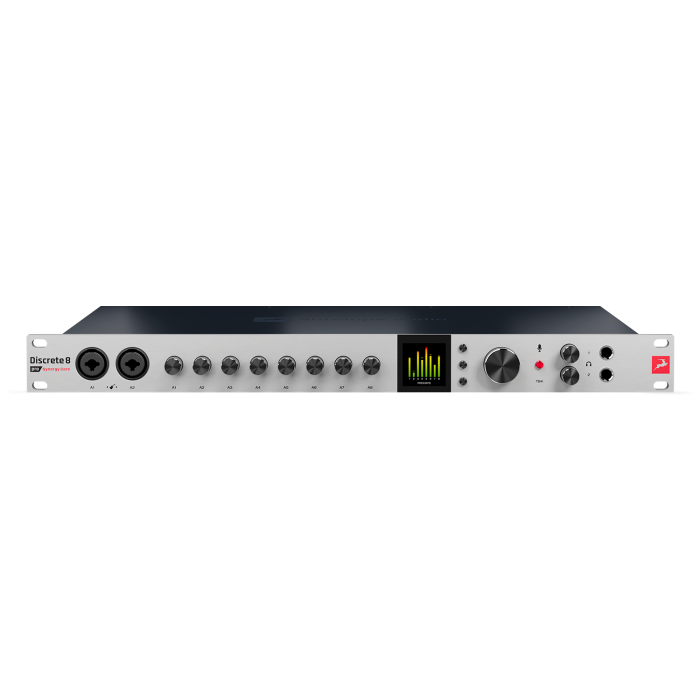

Antelope Discrete 8 Synergy Core

Features
Premier Synergy Core FX processing
36 included real-time audio effects + optional additions
8 Console-grade Class A mic pres with discrete transistor design
Class-leading DA monitor outs with 130dB DNR
4th Generation 64-bit Acoustically Focused Clocking
8 Analog line outs over DB25 (DC Coupled)
Thunderbolt™ & USB connectivity
A pair of monitor outs on TRS
2 Stereo headphone outs
3 Word Clock outputs
Create & share custom presets
Intuitive software control panel
Specifications
ANALOG
Analog Inputs
6 x Mic / Line Inputs
2 x Mic / Line / Hi-Z Inputs

Analog Outputs
1 x Monitor Out (Pair) on TRS ¼ Jack, +20 dBu max
2 x ReAmp Out on TRS ¼ Jack
1 x Line Out (8 channels) on DB25, +20 dBu max
2 x Stereo Headphone Outputs

Mic Preamp
EIN: -128 dBu (A-weighted)
Dynamic Range: -121 dB (A-weighted)
THD: -106 dB
Max input: +18 dBu
Max Gain: 65 dB

D/A Monitor Converter
Dynamic Range: 130 dB
THD + N: -115 dB

A/D Converter
Dynamic Range: 121 dB
THD + N: -112 dB

D/A Converter (Line Out)
Dynamic Range: 121 dB
THD + N: - 100dB
DC Coupled
DIGITAL
Digital Inputs
2 x ADAT (up to 16 channels)
1 x S/PDIF (up to 2 channels)

Digital Outputs
2 x ADAT (up to 16 channels)
1 x S/PDIF (up to 2 channels)

USB 2.0 I/O
USB 2.0 Type B connector
24 channels I/O

Thunderbolt™
Thunderbolt™ connector
32 channels I/O
CLOCKING
Word Clock Input
1 x Inputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Word Clock Outputs
3 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Clocking System
4th Generation Acoustically Focused Clocking
64-bit DDS

Sample Rates (kHz)
32, 44.1, 48, 88.2, 96, 176.4, 192
OTHER
Operating Temperature
0-50°C, 32-122°F

Weight (Approx)
3.0 kg/ 6.61 lbs

Dimensions (Approx)
Width: 483 mm / 19”
Height: 44 mm / 1.7”
Depth: 220 mm /8.6”

Power Consumption
20 Watts

System Requirements
WINDOWS
OSWindows 10 x64 Bit with latest Microsoft Updates
Disk SpaceAvailable Hard Drive Storage Space
PortsAvailable Thunderbolt™ & USB 2.0
CPUIntel Core i3™ or AMD FX or Higher
Memory (RAM)4GB Minimum (8GB or more recommended)

MAC
ModelApple Mac 2012 or newer
OS XMinimum macOS 10.12 (Sierra) and higher - Recommended macOS 10.14 (Mojave)
Disk SpaceAvailable Hard Drive Storage Space
PortsThunderbolt™ & USB 2.0
Memory (RAM)4GB Minimum (8GB or more recommended)
