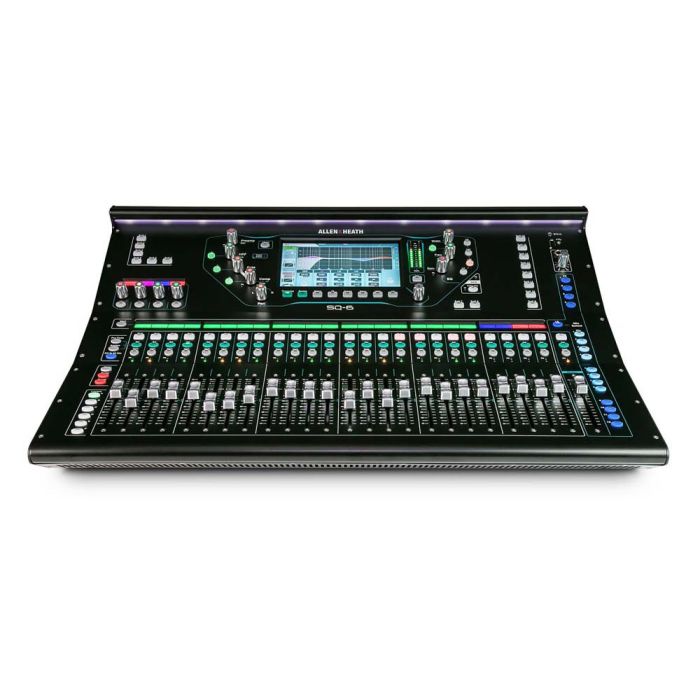

ALLEN & HEATH SQ-6 48 channel / 32 bus digital mixer

ALLEN & HEATH SQ-6 48 channel / 32 bus digital mixer

Features

• 96kHz FPGA processing
• 48 Input Channels
• DEEP Processing ready
• 25 Faders / 6 Layers
• 12 Stereo mixes + LR
• 3 Stereo Matrix
• 8 Stereo FX Engines + dedicated returns
• 7" capacitive touchscreen
• SLink port for remote audio / expansion
• 64ch I/O Port for audio networking

• 32x32 USB audio interface
• SQ-Drive direct recording to USB
• AES output
• Chromatic channel metering
• Integrated LED illumination
• Dedicated physical controls
• 16 Assignable SoftKeys
• 4 Assignable Soft Rotaries
• Channel LCD displays

96kHz XCVI Core

SQ is a future-proofed, next-generation console, powered by Allen & Heath's 96kHz XCVI FPGA engine. XCVI delivers class-leading high resolution audio quality, ultra-low latency of <0.7ms, variable bit depth for ultimate precision and noise performance, mix coherency down to the sample, and the sheer power to handle high channel / mix counts and ample FX / processing.

DEEP processing ready

SQ's DEEP processing architecture allows owners to hand-pick boutique compressor and preamp emulations to suit their style and needs. DEEP plugins can be embedded directly within the mixer's inputs and mix channels, all without adding system latency or setup hassles.

The Ultimate IEM Mixer

With no less than 12 stereo mixes and super-low latency, and both parametric and graphic EQ on every mix, SQ is the perfect companion for in-ear monitoring setups. SQ's airline-friendly compactness and rugged build quality mean there's no reason to gamble on house monitor consoles again.

Expandable up to 48 mics

SQ-6 has all the onboard I/O you need for standalone operation. Thanks to its SLink intelligent port, SQ can also be expanded up to a total of 48 mic inputs via a family of 96kHz and 48kHz rack and stage box expanders (e.g. AB168, AR2412, AR84 and DX168), making it a flexible, mix 'n' match solution for owners of other Allen & Heath digital systems. You can also link your SQ directly to another SQ or even a dLive system.

Dante, Waves and more

SQ is the centrepiece of a growing ecosystem of apps, expanders, audio networking, personal mixers and more, allowing you to connect, adapt and expand to your heart's content. It's compatible with leading audio networking standards too - add an audio networking card such as Dante or Waves to SQ's I/O port and you're ready to integrate with installed systems, provide a digital FoH / Monitor split and more.
