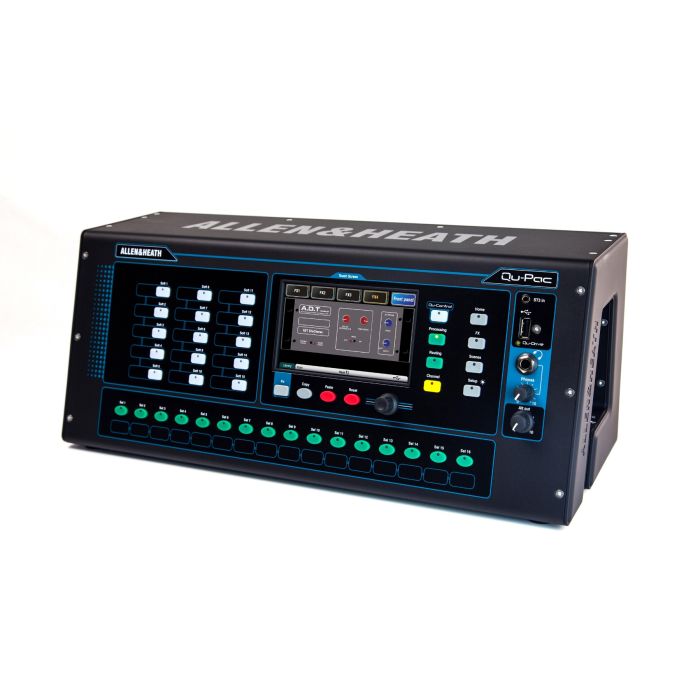

Allen & Heath Qu-Pac DIGITAL MIXER

$1,999.00
In stock
SKU
Qu-Pac

Qu-Pac takes the power and legendary quality of the Qu family and shrinks it into a compact desk or rack mount format.

With Qu-Pac you are free to mix from your iPad, but the full functions of the mixer can be accessed from the front panel and touchscreen should you need them.

Custom settings and Cat5 expansion up to 38 inputs, makes Qu-Pac a scalable, failsafe solution for hardworking bands, schools, hotels, corporate events, live music bars, conferences, personal mixing and many more scenarios requiring a pro mixing solution in a tiny footprint.

User permissions and the customisable Qu-Control screen make Qu-Pac convenient and safe for day-to-day use by non-technical staff.

Qu series features include multitrack recording direct to USB, Automatic Mic Mixing, ProFactory mic presets, plus an ever growing ecosystem of apps, accessories and remote I/O.



More Information
Video

UPC 6938122242128
  • Manufacturer: allen-heath

Features

  • 19” Rack Mountable
  • 16 local Mono Mic/Line Inputs (TRS + XLR)
  • Recallable AnaLOGIQTM Preamps
  • 3 Stereo Inputs (TRS)
  • 12 local Mix Outputs (XLR)
  • Expandable to 38 input, 24 out using dSNAKE AudioRack
  • 4 Stereo Groups (switchable to Mix mode)
  • Up to 11 Monitor Mixes (4 mono + 7 stereo)
  • 4 FX Engines
  • 4 dedicated FX Sends / Returns
  • 4 Mute Groups
  • 4 DCA Groups
  • AES Digital Out
  • 32×32 USB Audio Interface
  • dSNAKETM Remote Audio Port
  • 800×480 Touchscreen
  • 15 Soft Keys
  • 16 Custom Select keys
  • Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
  • Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
  • Automatic Mic Mixer
  • Channel Ducker on all Inputs
  • ProFactory Mic Presets
  • iLive FX Library
  • Built-in Signal Generator
  • RTA with Peak Band indication
  • Spectrogram to aid feedback elimination and room acoustics
  • DAW MIDI Control
  • Customisable Qu-Control screen to suit your application
  • Qu-Pad fully-featured iPad App
  • Qu-You iPhone / Android personal monitoring app
  • Qu-Control customisable iOS app for simple wireless control
  • Compatible with ME Personal Mixing System

Qu provides much more than just a mixer. Qu is an entire ecosystem with Remote AudioRacks allowing I/O to be placed where it’s needed, ME Personal Mixers expanding monitor mixes and enabling simple, time-saving local control, Qu Apps for complete remote setup and wireless mixing on stage or anywhere else in the venue, ProFactory Mic presets to speed up preparation time and ensure the best sound, plus USB recording and DAW integration for powerful workflow optimisation from one centrepiece device.

Touch Control

Having massive processing power and advanced functionality is great, but it counts for nothing if you can’t access the controls you need in a heartbeat.

The 800 x 480, sixteen million colour Touchscreen and its dedicated data encoder form the heart of Qu-Pac’s interface, providing super-fast, easy access to all settings. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.

The Qu-Control key brings up a fully customizable screen which gives access to channels and settings tailored to the user and application. Several ‘widgets’ can be assigned to the page, including channel levels, mutes and assignment on/off switches and are arranged to suit the user requirement, for example, as a source selection and level control of background music to one or multiple zones.



Qu apps for greater wireless control

Add the fully-featured Qu-Pad app for iPad to your Qu-Pac and you’re free to EQ and mix monitors on stage, roam around the venue whilst adjusting the PA, and mix the show from the heart of the audience. Qu-Pad connects to the mixer over Wi-Fi and gives instant access to all live mixing parameters and settings. More info.

Qu-You allows up to seven performers to control their own monitor mixes using any iOS or Android device, and frees up the engineer to focus on mixing for the audience. More info.

Qu-Control is a customisable iOS app providing a simple interface for non-technical users to control the essential parameters of Qu mixers when technical operators are not around. More info.

Apps require the connection of a Wi-Fi router or access point to the mixer’s Network port.

AnalogiQTM Preamps

Qu-Pac features sixteen built-in AnalogiQTM digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage, which have been closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high-class, low latency 24bit analogue to digital converters, which are matched to 24bit digital to analogue converters to deliver the required high quality output. The AnalogiQTM preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital mixers.

dSNAKE™ Remote Audio Racks

Qu-Pac is a self-contained mixer, so if you’ve already got the analogue cables you’re good to go. If you’re thinking of trading in the copper multicore for a Cat5 digital snake, or expanding the number of input and outputs available, Qu-Pac’s built-in dSNAKE™ port has you future-proofed, allowing connection to a remote AB168, AR2412 or AR84 Stagebox. dSNAKE™ is our proprietary networking solution, boasting a transport latency of only 105us over cable runs of up to 120m / 390’.

The AudioRacks unleash all the power of Qu-Pac, giving you access to extra outputs for Stereo Matrix, Groups, and extra monitor Mixes.

Find out more about dSNAKE™ Remote Audio Racks

ProFactory Mic Presets

Allen & Heath has teamed up with leading microphone manufacturers and top engineers at Audio-Technica, Sennheiser, and Shure to provide EQ Library presets for a large number of popular and industry standard microphones. Presets for vocals, electric guitar, acoustic guitar, drums, brass and woodwind have been painstakingly crafted to offer you the best possible starting point for the source and your microphone of choice. Whether you’re a keen amateur or a seasoned professional, you can get to work quickly and easily, saving valuable time so you can concentrate on EQ’ing the source and room acoustics.

Download ProFactory preset libraries here:

Qu-Drive

Qu-Pac has an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24bit recording and playback straight to / from your USB key or hard drive. Capturing multitrack recordings of your shows has never been so easy. A selectable stereo pair can be recorded alongside the 16 Mono channels, and multitrack audio can be played back to the 16 Mono inputs plus ST1. On top of this, Qu-Drive also provides stereo recording patchable from any pair of Mix outputs, the Main LR (pre, post, or summed to mono) or even the PAFL bus, with 2- track stereo playback to ST3.

USB Audio Streaming

Qu’s built-in interface streams multitrack audio to your Mac or PC via a flexible patching system: all Input channels and the Main LR can be recorded at the same time, or you may choose to record something different such as FX returns or a pair of mixes.

The returns from the computer can be assigned to the Input  channels. The interface is class-compliant on Mac OS X – and drivers are available for Windows systems. Either way, it will be recognized straightaway by any DAW supporting ASIO or Core Audio, including Logic, Cubase, Reaper, and Pro Tools.

Rack FX

Qu-Pac’s dynamics and FX algorithms are derived from those used in Allen & Heath’s pro touring consoles. Some of the world’s most respected audio engineers have chosen to use RackFX on tour in preference to top-end plug-ins and external FX units. Qu-Pac boasts 4 stereo RackFX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more. FX are returned to the mix on dedicated return channels, so you’re not tying up your mono and stereo input channels. Each Stereo FX Return has a dedicated 4 band PEQ.



Find out more about FX and processing for Qu
