High-performance hemispherical boundary layer microphone

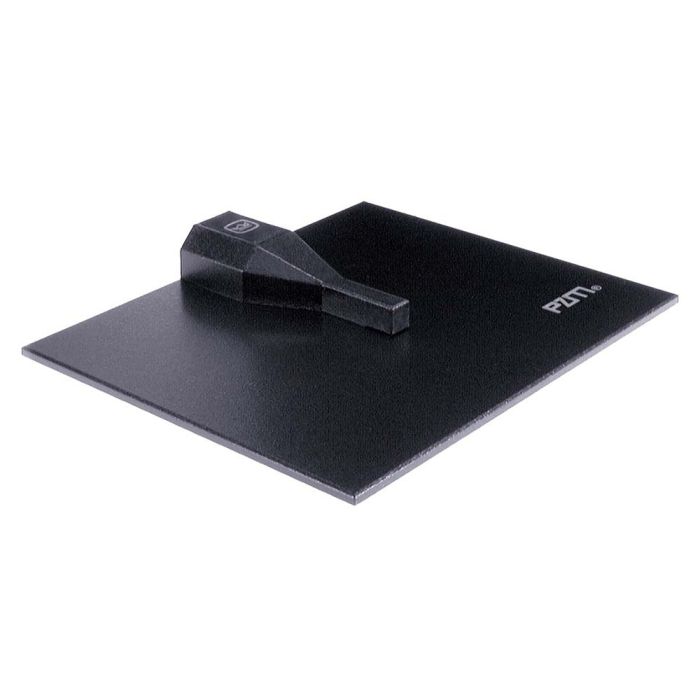

The PZM30 D high-performance hemispherical boundary layer microphone is a Pressure Zone Microphone(R) designed for professional recording, sound reinforcement and broadcasting. The capsule is mounted in the "pressure zone", an area where direct sound and reflected sound are in phase, which provides a 6dB higher sensitivity. Two selectable frequency responses (flat/rising) provide greater flexibility in mic placement and sonic character. The rising position of the frequency switch adds brilliance and a crisp attack on percussion, drums, or piano. The PZM30 D comes in a very rugged, low-profile, metal housing with detachable cable that makes it sturdy and reliable for heavy duty applications.

General Specifications

• Audio frequency bandwidth20 - 20000 Hz
• Sensitivity7 mV/Pa
• Signal to Noise74 dB-A

Dimensions

• Length152 mm
• Width127 mm
• Height19 mm

Audio Output

• TypeBalanced XLR
• GenderMale
• Contacts3-pin

Powering Interface

• Voltage12 to 48 V
