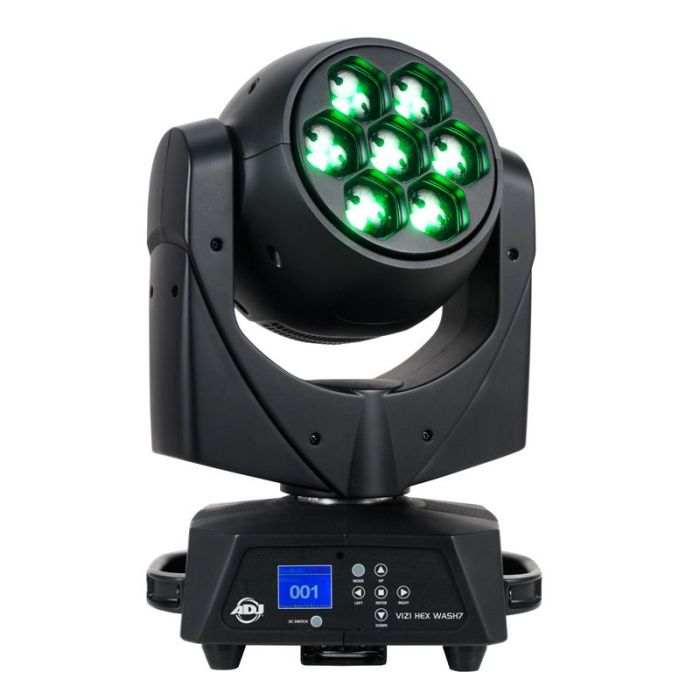

The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 15W HEX (RGBWA+UV) LEDs. At 105W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY wireless DMX on-board.
Optical
Light Source: 7 (15) Watt HEX RGBWA+UV LED
Life Expectancy: 50,000 hrs
Beam Angle: 5~55-degree
Refresh Rate: 1.2KHz
Specifications
Pan & Tilt Range: 630-degree (540 Optional) /Tilt 270-degree
Colors: 64 built-in color macros
Dimming: Electronic
Zoom: Motorized 5°-55°
Strobe: Electronic
Dimmer Curves: 5 dimmer curves
Operational Modes: 2 modes Program/ DMX
Flicker Free
Wifly EXR DMX Range: 2,500 feet (line of site)
Wifly On/Off
Dimensions (LxWxH): 11.75” x 8 x15.75”/300x200 x 400mm
Weight: 19 lbs./8.5 kgs
Connections
Power Input: Locking power IN connection
Power Pass through: Locking power OUT connection
Data: 3 & 5-pin In/Out DMX
With Wired Digital Communication Network
Control
DMX Modes: 2, RDM (Remote Device Management)
On Board: LCD menu 180 degree inverse
16 Selectable WiFLY Address Channels
Certifications
Certifications: ETL Approved, CE Certified
Electrical
Input Voltage: 100~230 V, 50 Hz./60Hz
Power draw @120V: 137W
Power draw @ 220V:
Optional Road Cases:
DRC MH: 2 Vizi Hex Wash7 fit in the DRC MH Road Case
QRC MH: 4 Vizi Hex Wash7 fit in the QRC MH Road Case
