Details
Available now from ADJ USA • $1,899.99
The Vizi BSW 300 is ADJ’s most powerful LED Moving Head to date. It uses a specially designed 300W LED engine that offers massive output for most large venues and event productions. It is a great hybrid utility fixture as it acts as a beam, spot and wash all in one fixture. What’s more, is it comes in a smaller footprint than most other movers in its class.

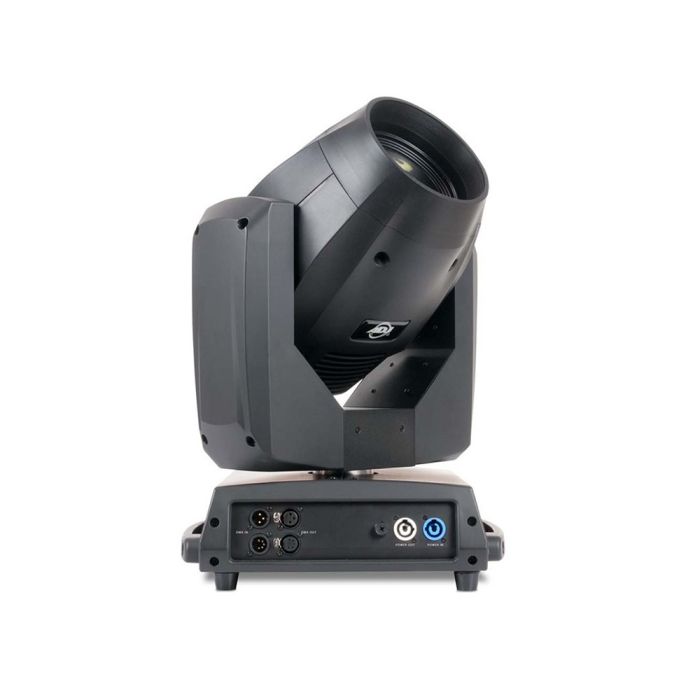

The Vizi BSW 300 offers motorized focus, two 6-facet rotating prisms (one linear & one circular), 2 separate color wheels, 2 GOBO wheels (1 wheel fixed metal & one wheel rotating/replaceable GOBOs). There is a LCD function display on the front panel, with the rear panel offering powerCON In/Out and 3-pin & 5-pin DMX connections.
Protect the Vizi BSW 300 during storage and transport with the ADJ DRCVIZI Road Case.
Specifications
Optical
• Light Source: 300W White LED
• Beam Angle: 8° to 17° ( Spot Mode)
• Beam Angle: 1° to 7° (Beam Mode)
• Beam Angle: 18° to 26° (Wash Mode) Frost Filter
Specifications
• Pan / Tilt Range: 540° / 240°
• Color Wheel 1: 7 + Open
• Color Wheel 2: 7+ Open (CTO 3200k), CTC (5600k), UV
• GOBO Wheel 1: 6 Fixed + Open (3 Beam Reducers Beam Mode)
• GOBO Wheel 2: 7 Rotating/Replaceable + Open (3 Glass, 4 Metal)
• Dimming: Electronic
• Shutter: Electronic
• Focus: Motorized
• Frost: 26° (Wash)
• Prism 1: Rotating 6-facet Circular
• Prism 2: Rotating 6-facet Linear Rotating
• PWM (Pulse Width Modulation): 1.2K
• Strobe Rate: 0.3-20HZ
• DB Rating @ 1Meter: Front: 50; Back: 50; Left: 53; Right: 54; Top:49
• Dimensions (LxWxH): 14.75” x 12.75” x 21.5” / 376 x 325 x 545mm
• Weight: 49 lbs. / 22 kg.
Connections
• Power Input: powerCON
• Power Pass through: powerCON @120V or 220V
Control
• Control Channels: 17 or 20
• DMX Modes: 2
• Control: 3-pin and 5-pin DMX
• Pan / Tilt Correction: Automatic
Electrical
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 345W, 2.88 Amps
• Power draw 220V 50Hz: 345W, 1.57 Amps
Certifications
• ETL Approved
• CE
• IP 20: Dry area, No liquids
What's Included
• Power Cable- 6’ powerCON
to Edison
• Qty: 2 Omega Clamps
• Safety Cable
• Manual
