ADJ Element QA

$269.99
In stock
SKU
Element QA

The Element Series is a battery powered, WiFLY wireless DMX LED Par Series from ADJ. The Element QA features six 5W RGBA (4-IN-1) LEDs and is intended for indoor use.

More Information
Video
  • Manufacturer: Adj

Details

Available now from ADJ USA • $269.99

From the Element Par Series, the Element QA is a battery powered LED Par with ADJ’s WiFLY EXR wireless DMX for indoor use. It’s powered by six 5W RGBA (4-IN-1) LEDs. The Element Par Series are lightweight and easy to operate with a carry handle and kickstand for uplighting, staging, events, productions and any mobile application. No cables or wires needed!

Specifications

Optical:
• 6 x 5-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
• Life expectancy: rated at 50,000 hrs.
• LUX: 901 @ 2M; 213 @ 4M
• Beam angle: 20-degree
• PWM frequency:1000Hz

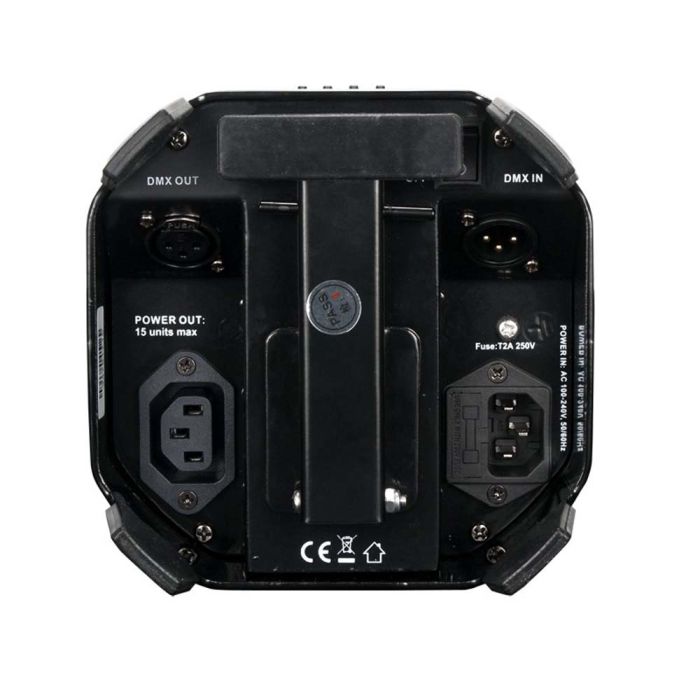

Connection:
• DMX:3-pin DMX In/Out
• IEC In/Out to power battery or daisy chain fixture

Control:
• Control protocol: WiFLY EXR DMX, 3-pin DMX
• 5 DMX Channel modes: 4, 5, 6, 9 or 10
• Remote control: WiFLY EXR DMX, UC-IR, Airstream IR

• 5 Operational modes: RGBA Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled

Features:
• Built-in kickstand to angle figure while it’s on the floor

• 4-button DMX menu display on rear panel
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver
• 64 built-in Color Macros

• Variable RGBA color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!

• LED pulse and strobe effect (0.2Hz-11Hz)

• Flicker Free Operation

• Electronic Dimming: 0 - 100% with 5 dimming curves
• Run all night – No duty cycle

• Energy Saving Mode

Battery:

• Battery Type: fixed lithium battery

• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg.
• Battery Voltage: 11.1V
• Battery Capacity: 6.6AH
• Total Lithium Ion Cells: 9 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper

• Battery Charge Time: 4.5 Hours (With POWER switch On)
• Battery Life: 11 hours (single color)

Electrical:

• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
• Multi-voltage operation: AC 100-240V, 50/60Hz

Dimensions / Weight:

• Dimensions (LxWxH): 5.5” x 5.5” x 7.5” / 140 x 140 x 190.5mm
• Weight: 6.5 lbs. / 2.9kg.
