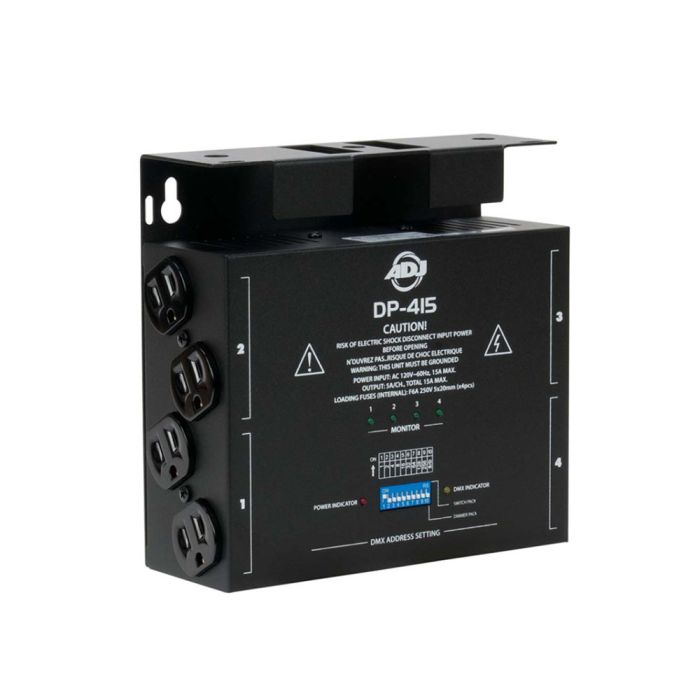

ADJ DP-415

Details

ADJ's DP-415 is a compact, poratable 4-channel DMX dimmer that has two 3-prong 15Amp Edison sockets for each channel giving you a total of 8 plugs altogether allowing you to be able to control up to 8 fixtures. The dip switches on the face of the unit allow you to set the DMX patch address and operation mode for the pack


The hanging bracket is reversible to give you flexibility when installing this product to either a hanging bracket or on a truss and it can also be used with a clamp. Also to make this product easier to use we incorporated LED "ON" indicators and a DMX signal indicator LED is also incorporated so that when DMX signal is present, the LED illuminates.



Specifications

• Compact 4-Channel DMX Dimmer
• 2x 3-pong Edison plugs per channel (8 total plugs)
• On/Off power switch
• XLR In/Out
• 10-position dip switch settings to address DMX
• Assign as a dimmer pack or switch pack
• Changeable hanging bracket to hang on truss
• LED “On” indications
• Max Power: 15A Total, 5A per channel
• Dimensions (LxWxH): 7” x 7” x 2.5” / 180x177x64mm
• Weight: 3 lbs./1.2 kgs.
